Universal EM-MWD Modem
(Transmitter / Receiver for both Downhole and Surface)
- Unrivaled in noise suppression and channel distortion elimination: Outperforms the leading competitors by over 5 dB, which is equivalent to being able to drill more than three times deeper
- Highly customizable as per customer's specifications
- Two-way communication
- Modulation formats currently supported: PSK (BPSK / QPSK), MSK / CPFSK (many more are coming soon)
- Carrier frequencies supported: All the range of 1–20 Hz (1, 2, 3, ... , 20 Hz)
- Baud rates supported: All the range of 1–20 bps (1, 2, 3, ... , 20 bps)✶
- Frame size: Unlimited
- Error Correction Coding: Convolutional, currently supported (7,5), (15,17), (31,33), (371,247), code rates ⅔, ¾, ⅘, ⅞, or any existing (encoded is the entire frame, not just the payload, which makes the modem even more resilient to noise and channel distortion)
- Multiple-antenna layout for better noise suppression: currently 2 (expandable to any number, limited by hardware)
- Coherent adaptive carrier synchronization by PLL
- Adaptive timing synchronization
- Extremely fast and noise-resilient adaptive equalizer
- ECC Decoding: Convolutional with Soft Output
- Programming language: C (currently fixed-point), MATLAB©
- DSP Platform: currently TI C5505, OMAP-L138 / C6748 (portable to any other)
✶ Because of the bandwidth requirements, rates larger than their carrier frequencies could be subpar and may not be recommended, i.e., F1R7, F8R12, F17R20, etc.
What we do
- Custom-built space-grade software defined radios (transmitter / receiver) for EM-MWD telemetry
- Consulting in the field of Signal Processing and wireless modem design and architecture

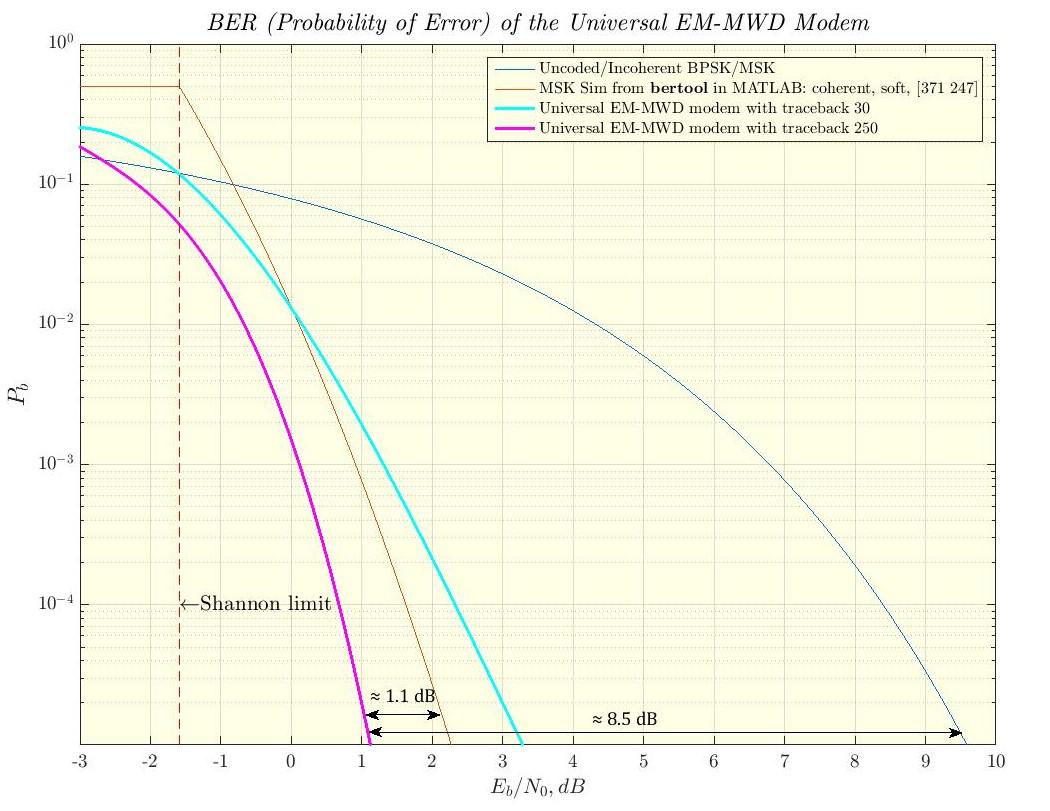

The BER curves of the Universal EM-MWD Modem
The BER curves of our Modem demonstrate the clear advantage over the competition. the Modem provides more than 8.5 dB improvement over an uncoded BPSK/MSK and 1.1 dB over MATLAB simulation for a coded coherent MSK receiver.
(Click to see a larger image)
Performance of the Modem in the Presence of Noise and Channel Distortion
💥New for 2023!
Universal EM-MWD Modem is capable of decoding signals even in the most distortive and noisy environments.
Transmission rate shown:
Fc = 9 Hz / R = 9 bps
Performance under most ideal conditions
Demonstration of Universal EM-MWD Modem performance under most ideal circumstances: when there is no noise and no channel distortion.
Three example transmission rates are shown:
Fc = 20 Hz / R = 20 bps,
Fc = 13 Hz / R = 8 bps, and
Fc = 8 Hz / R = 7 bps.
Performance of the Modem in the Presence of Noise and Channel Distortion
Universal EM-MWD Modem is capable of decoding signals even in the most distortive and noisy environments.
Two example transmission rates are shown:
Fc = 9 Hz / R = 9 bps and
Fc = 19 Hz / R = 17 bps.
Performance of the Modem with SNR ≈ –2 dB
Behold the amazing Universal EM-MWD Modem perform flawlessly in the presence of SNR ≈ –2 dB (that’s 2 dBs more noise than signal!) and severe channel distortion!
Performance of the Modem in a Noiseless Distortive Environment
See how the Universal EM-MWD Modem performs under severe channel distortion and no noise
